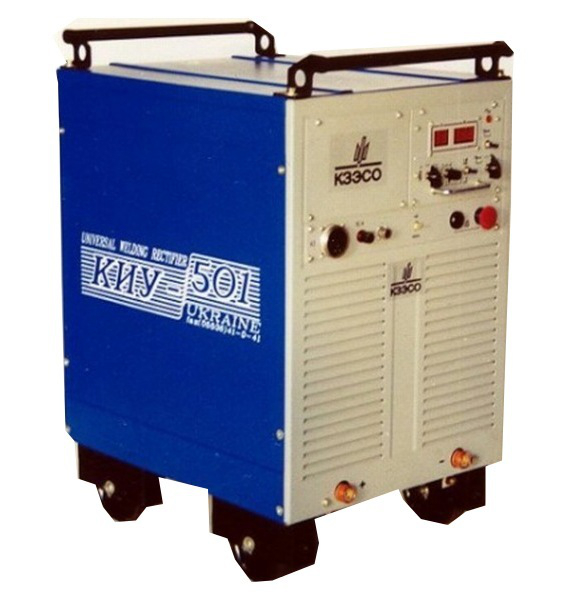

. Welding rectifier kiu-501 b/a

Universal welding rectifier is designed for automatic and semi-automatic welding in shielding gases and under flux, and also for manual arc welding with stick electrodes of all types. The rectifier has excellent welding properties: stable arc burning, low spatter, higher quality weld. The presence of the wheels makes the source particularly mobile. Specifications: Nominal voltage,V - 380 Frequency mains current, Hz - 50 Rated welding current at 100% duty cycle, Rated welding current at duty cycle 60% (at a welding cycle 5 min),A - 500 Limits smooth control of welding current,While decreasing the 50 - 500 Limits smooth control of welding current,A - hard,60 - 500 The regulation limits the operating voltage,decreasing 22 - 46 Adjustment range of operating voltage,B - tight,18 - 50 Equivalent to the maximum active power consumption (including PV),kVA - 18 Idle running voltage,V - 85 The diameter of electrodes,mm - 2 - 6 Weight,kg - 275 Dimensions: on wheels (WxHxD),mm - 805*600*1030 on legs (WxHxD),mm - 790*600*955
