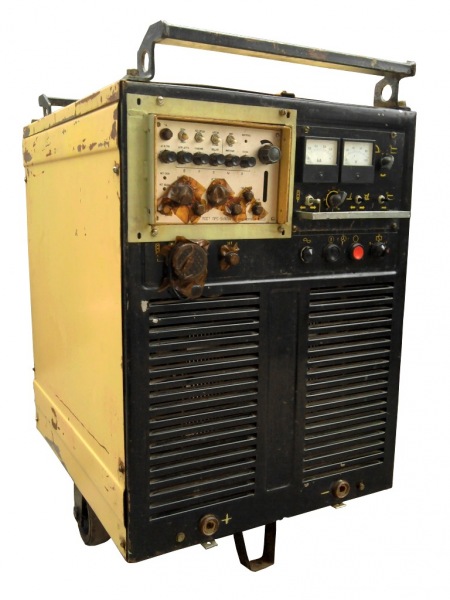

The rectifier welding VDU-506 b/a

Universal welding rectifier VDU-506 is designed for manual arc welding with covered electrodes with direct current, packaging, semi-automatic and automatic machines for welding of steels in shielding gases at a constant current. Is adjustable thyristor rectifier with hard or falling. Difference from version VDU-506С is a classic build and the lack of combined current-voltage characteristics in the mode of semiautomatic welding. Works in complete with semiautomatic machine, PDGO-510-5, with the stabilization of the feeding speed of the welding wire and the possibility of removing the feeder from the rectifier to a distance up to 30 meters, optimal for the craft of welding conditions on arc currents up to 450A (duty cycle=100%). The rectifier has the following main technical solutions: • Stepless regulation of welding current in MMA mode and the welding voltage in the mode МIG/MAG • Special combined external volt-ampere characteristic • Ability to preset the arc voltage in MiG • The sockets 36 to the power of the gas heater • Protection from thermal overload • Quick, safe current connectors • Insulation class H • Forced cooling. Specifications: Supply voltage: 3x380 V Rated input capacity: 34 kVA The frequency of the mains voltage, 50 Hz Rated welding current: 500 A (PV, PN, 60 %) Range of welding current: 60 And 500... 50...500 And Operating voltage, V: - hard to har-Ki 18...50 - falling har-Ki 22...46 The open circuit voltage, maximum: 85 Diameter stick electrodes: 2...6 mm Power consumption: 34 kW, max Weight: 290 kg Dimensions (LxWxH): 830*420*1080 mm
