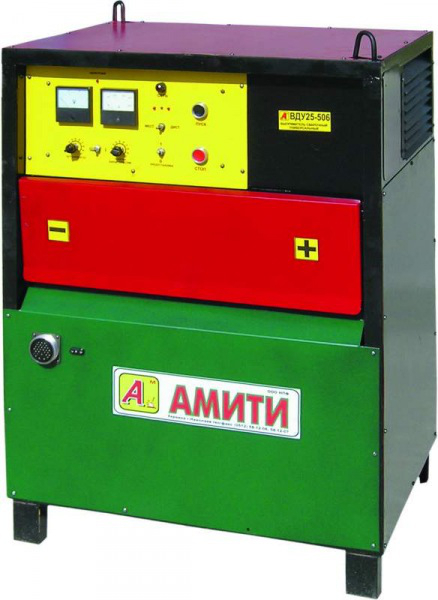

Welding rectifier VDU Amiti 25-506 b/a

The rectifier welding VDU 25-506 intended: 1. For automatic and mechanized welding in shielding gases and mixtures of gases; 2. For automatic and mechanized welding under a flux layer; 3. For a complete set of posts for manual arc welding, cutting, surfacing stick electrodes at a constant current. Welding rectifier is a controlled six-phase rectification circuit with smoothing reactor, whereby the source has a low coefficient of pulsation of the welding current and high accuracy of stabilization of a given voltage, combined with the powerful smoothing choke they provide excellent dynamic performance – this rectifier VDU 25-506 can be used for welding and other critical sealed seams. The welding rectifier consists of power transformer, balancing reactor, a smoothing choke, a modern tiristor rectifier diode module with a classic forced air system cooling. In comparison with analogous rectifiers, a source has the following advantages: a) simple design, high reliability and longevity; b) the possibility of local and remote turn-on of the welding current; C) the absence of wear of the electromagnetic contactors; d) the presence of the smoothing inductor, which reduces voltage ripple and improve the dynamic properties of the rectifier; d) continuous adjustment of welding parameters, including angle current-voltage characteristics. Specifications VDU 25-506: 1. Rated welding current at duty cycle=100 %,A - 500 2. Range of welding current,A - 100 – 500 3. Adjustment range of operating voltage, - 22 – 60 4. The open circuit voltage, V, not more than - 72. 5. Primary current, A - 65. 6. Power consumption, kVA, not more than - 43. 7. Efficiency, %, not less than 85. 8. Overall dimensions, mm, not more - 500х700х1000. 9. Weight, kg, not more 350.
